Reciprocating Compressors

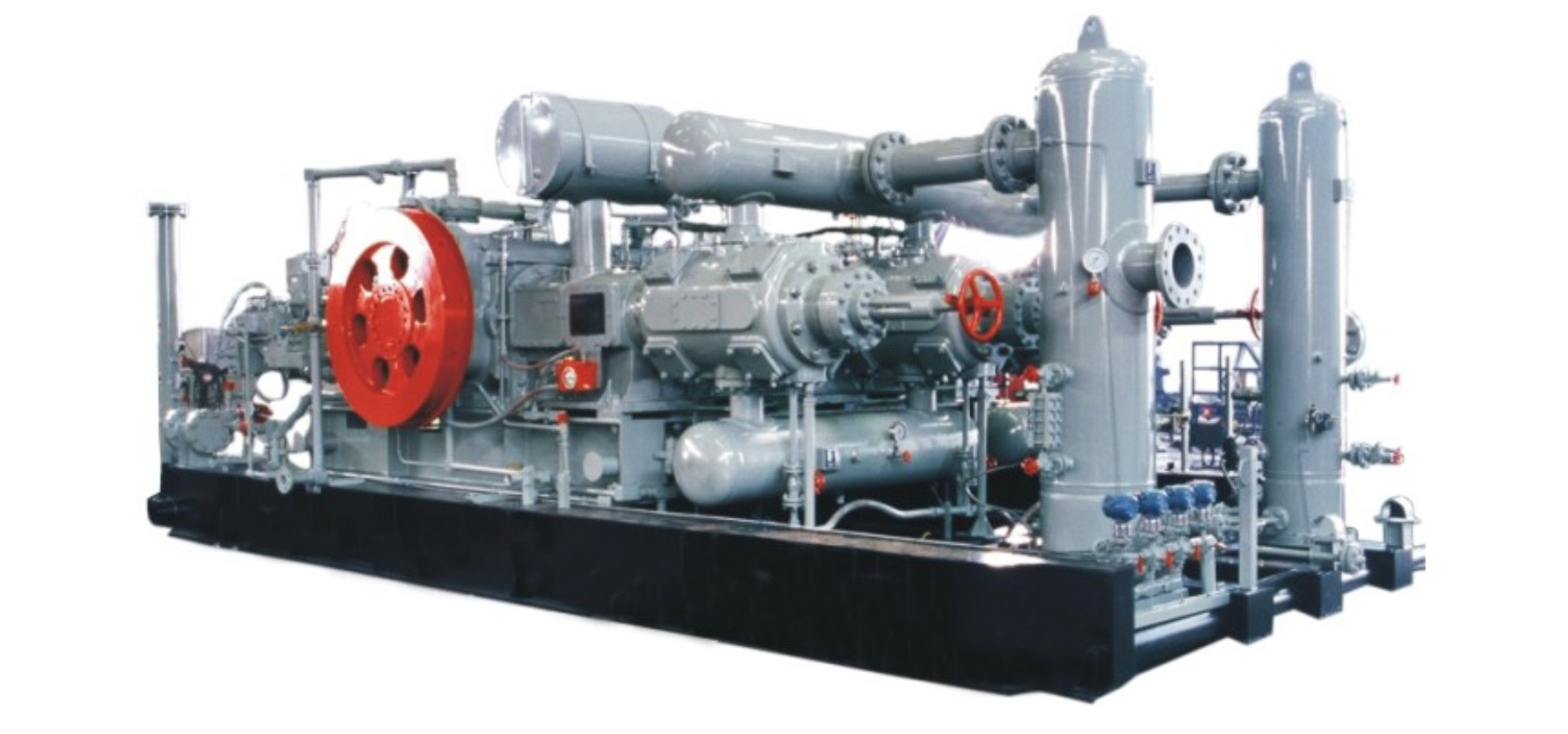

INTEGRAL NATURAL GAS COMPRESSOR UNIT

Specifications and Model Series of Integral Compressor Unit

Model	ZTY85	ZTY170	ZTY265	ZTY310	ZTY470	ZTY630
Row Number of PowerCylinder	1	2	2	2	3	4
Power Cylinder Diameter × Stroke	336.55×406.4	336.55×406.4	381×406.4	381×406.4	381×406.4	381×406.4
Rated Power(kw)	85	170	265	310	470	630
Rated RotatingSpeed(r/min)	360	360	400	440	440	440
Brake Mean Effective Pressure(MPa)	0.395	0.395	0.433	0.48	0.48	0.48
Row Number of Compression Cylinder	1	2	2	2	2	3
Stroke of Compression Cylinder(mm)	279.4	279.4	279.4	279.4	279.4	279.4
Maximum Allowable Load of Compression Piston Rod(kN)	98	98	133	133	178	178



Technical Parameters

Range of power: 85~630kW

Air displacement: 0.1~100×10⁴Nm³/d

Maximum discharge pressure: 35MPaG



Technical characteristics

1、 The engine is designed and manufactured in accordance with DEMA standards, and the compressor is designed and manufactured in accordance with APl618 and ISO13631..

2、 With natural gas as fuel, nonpressurized, skid-mounted as a whole, heavy duty with low speed, applicable to severe environment, and can realizing unattended operation on the site;

3、 Good fuel adaptability; the engine can normally operate with a low heating value within 16510kJ/Nm³~47700 kJ /Nm³; no detonation or power drop;

4、 The rotating speed and torque are wide enough to operate under 60-100% of rated conditions, which benefits the adjustment of minimum displacement capacity that can be as low as 36% of design displacement;

5、 Multiple adjusting modes of rotating speed, clearance mechanism, single-acting & double-acting cylinder allow adjusting displacement, load, temperature and other working parameters properly, thus adapting to the change in operating conditions within a relatively large range.

6、 Engine and compressor share one frame and one crankshaft, subject to symmetrically balanced arrangement, so that inertia force and inertia moment can be well balanced and vibration is small;

7、 Internal mixing gas injection and loop scavenging can effectively cool and clean cylinders, thereby ensuring that fuel can be controlled and saved;

8、 Isolated room of compressed air between compressor frame and engine piston can effectively prevent combustion exhaust from releasing to oil sump, prevent pollutions by lubricating oil and extend the service life;

9、 Power cylinder has a simple structure, without such wearing parts as rocker arm, tappet rod, cam, timing mechanism etc, and with less quick-wear parts and maintenance works;

10、 The special sulfur resistant design and manufacturing technology can make the compressor operate safely and reliably in a gas field with a high sulfur content;

11、 Local, remote and network data acquisition and monitoring system etc. has a high level of automation and completion, and can operate reliably.



Application

The compressor unit can be used for gas gathering and transportation, oil & gas treatment and processing, gas lit, as well as light hydrocarbon recovery. Working medium: natural gas, coal-bed gas and shale gas.

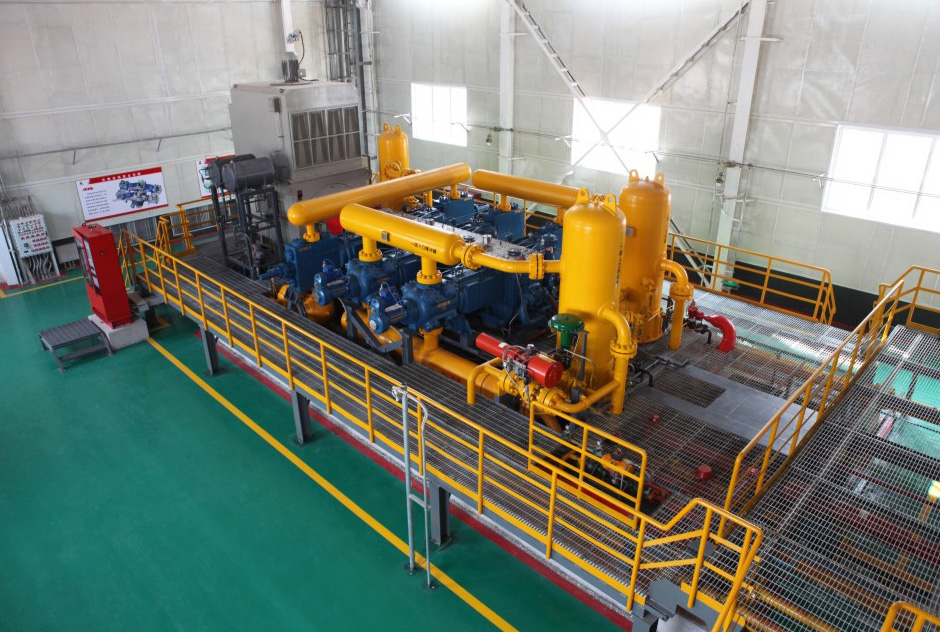

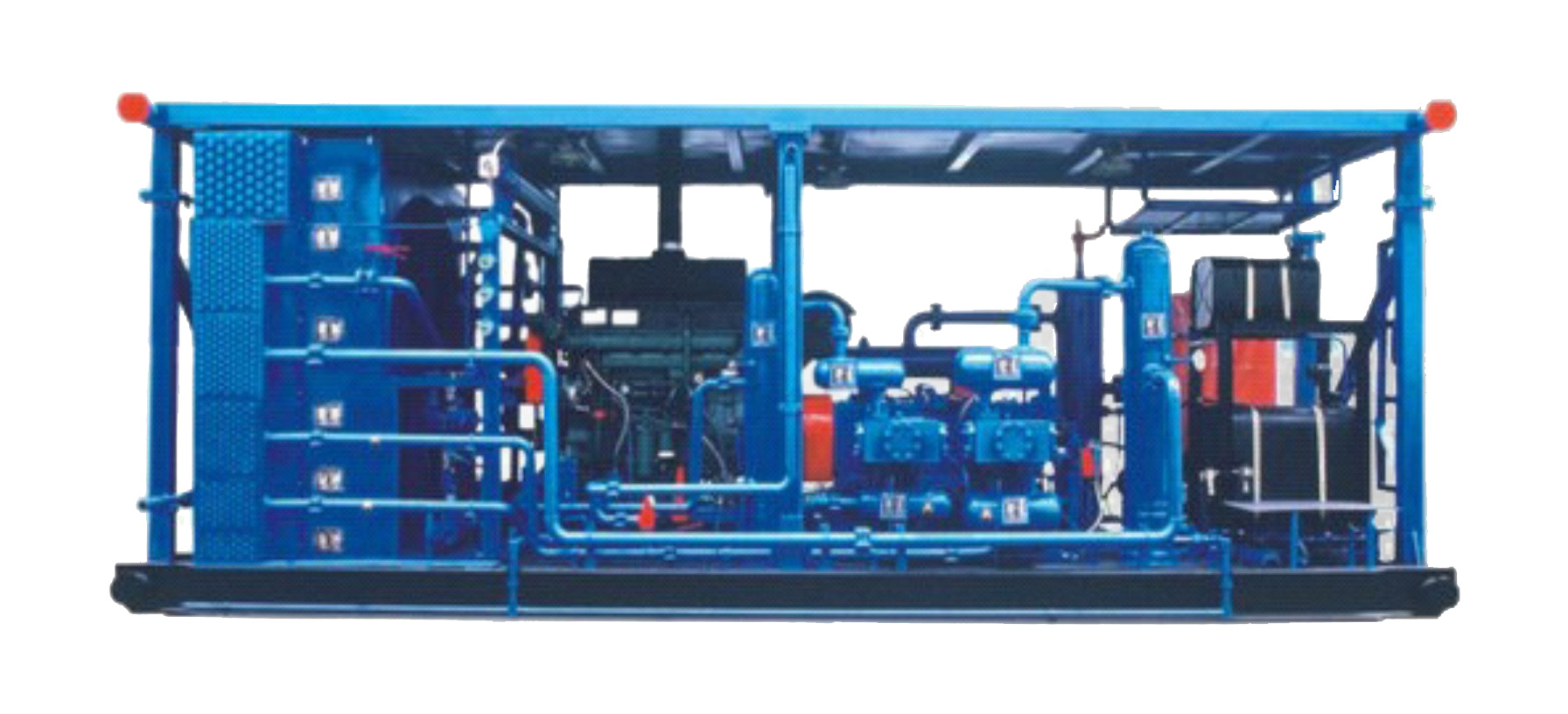

SPLIT COMPRESSOR UNIT

Split Compressor Unit

Technical Parameters

Range of power: 10~7,500kW

Air displacement: 0.1~1000x10⁴Nm³/d

Maximum discharge pressure: 52MPaG



Technical Characteristics

1、Designed and manufactured as per APl618 and lS013631.;

2、 Horizontally and symmetrically balanced structure, with an accurate weight difference in reciprocating parts in each row, can effectively balance the inertia force and inertia moment, so that the compressor unit can operate with a small vibration and a low noise;

3、 Highly stiff bare compressor mechanism optimized via mechanical treatment can eliminate wall surface vertical to force direction, so that the bearing capacity can be increased;

4、 Bearing surface of transmission pat is subject to a low specific pressure value design, so that working surface of moving part will have a low temperature rise, a small thermal expansion and a good directivity;

5、 Wide gas path and natural cooling cylinder will reduce the gas flow loss and improve the efficiency of compressor;

6、 The gas valve with a special structure and a targeted design features a high efficiency, a wide range of adaptive operating conditions and a long service life;

7、 The special sulfur resistant design and manufacturing technology can make the compressor operate safely and reliably in a gas field with a high sulfur content;

8、 Compressor unit is complete with multiple kinds of power sources including gas engine, electric motor, diesel engine etc, to meet a variety of requirements;

9、 Multiple kinds of skid-mounted structures (fixed, mobile, vehicle-mounted etc.) can adapt to a variety of field environments; Designed and manufactured as per APl618 and lS013631;

10、 Local, remote and network data acquisition and monitoring system etc. has a high level of automation and completion, and can operate reliably.

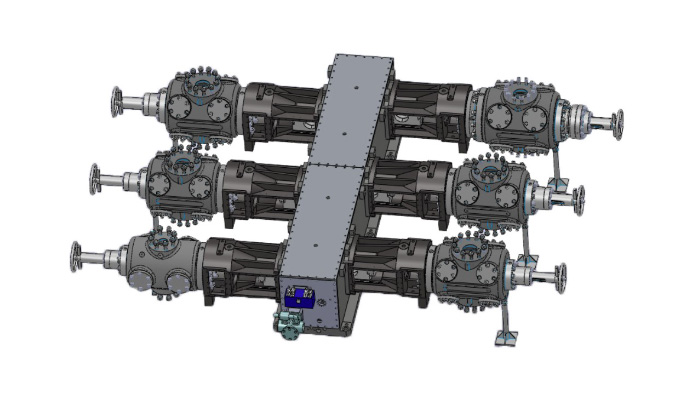

Series of Split Compressor

Model of Bare Compressor	CFP	CFD/CFA	CFR/CFJ	CFH/CFI	CFCICFK	CFB/CFT	CFV	CFW
Number of rows	2,4	2,4,6	2,4,6	2,4,6	2,4,6	2,4,6	4,6	6
Stroke(mm)	76.2	76.2	108	116	139.7	148	205	305
		88.9	88	142	165	170
Rotating speed(rpm)	1800	1800	1200	1500	1200	1200	750	500
		1500	1500	1200	1000	1000
Power of single row of compressors(kw)	50	125	200	475	575	1000	1250	1700
Total power of bare compressor(kw)	100	250	400	950	1150	2000	5000	10000
	200	500	800	1900	1300	4000	7500
		750	1200	2850	3450	6000
Piston rod load(tensile)(kN)	25	55	100	170	250	350	500	1000
Piston rod load(compressed)(kN)	27	59	109	182	263	372	531	1051
Diameter of main journal(mm)	65	88.9	108	150	190	216	260	360
Center-to-center distance of connecting rod(mm)	190.5	215.9	267	356	381	460	616	826
Piston rod diameter(mm)	28	38.1	42	52	63.5	78	98	120

Application

The compressor unit can be used for gas gathering and transportation, gas production and gas injection (gas storage), oil & gas treatment and processing, gas lift, light hydrocarbon recycling, natural gas liquefaction, refinery, gas drlling and pipeline pressure testing.

Working media: natural gas, coalbed gas, shale gas, olfield associated gas, fashing gas, air, nitrogen, carbon dioxide, hydrogen, hydrogennitrogen etc.

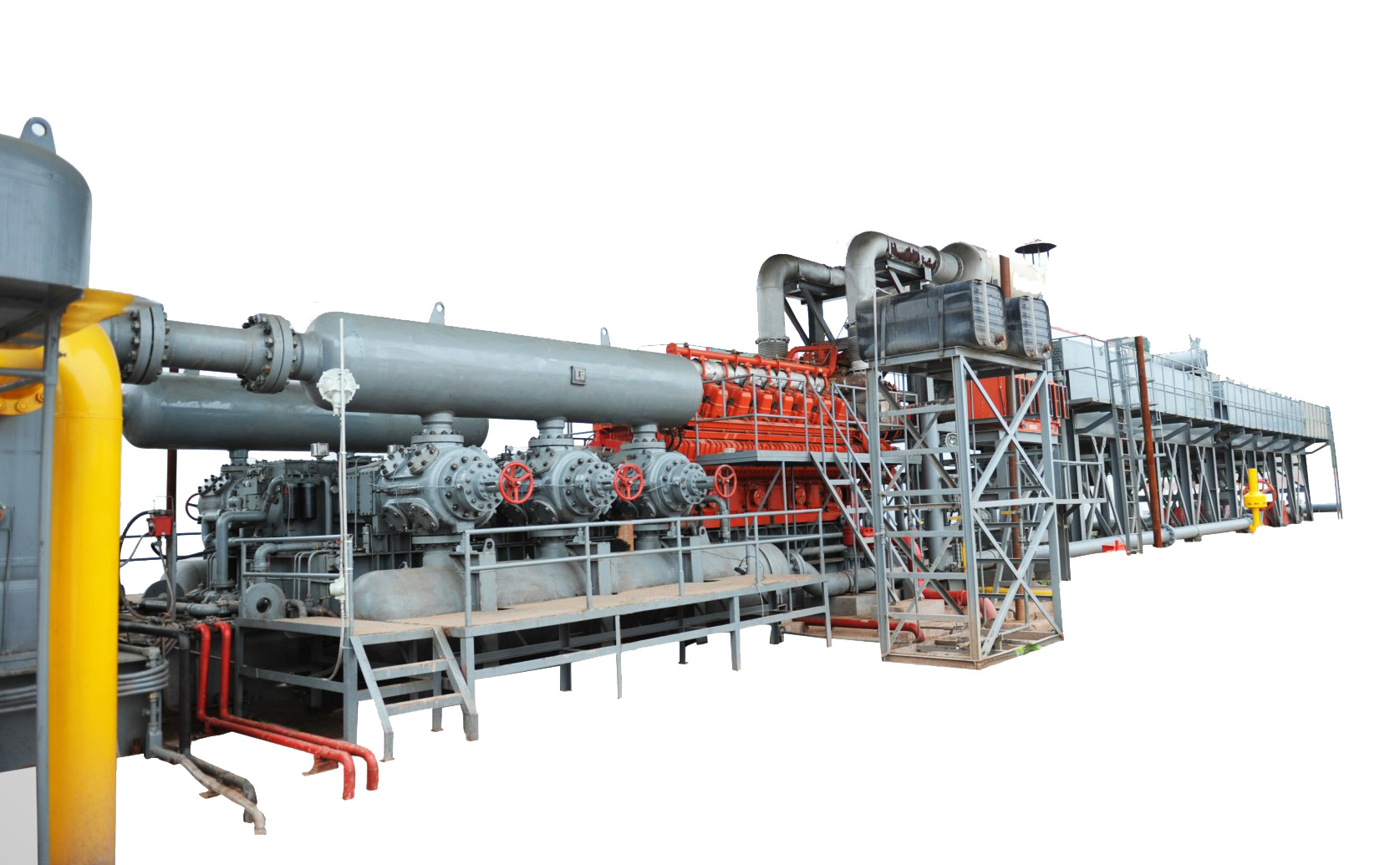

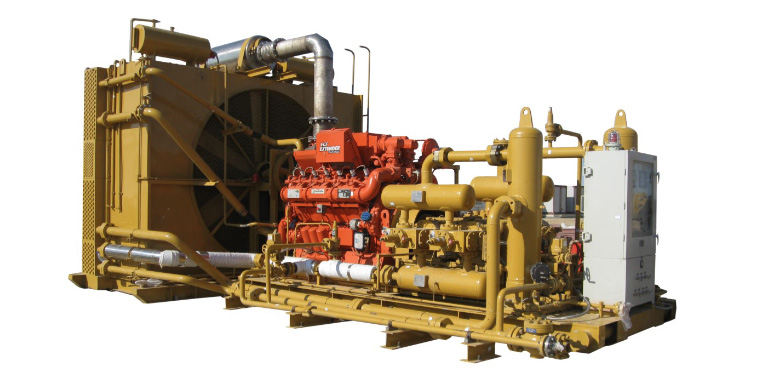

R series of gas engine driven split compressor unit

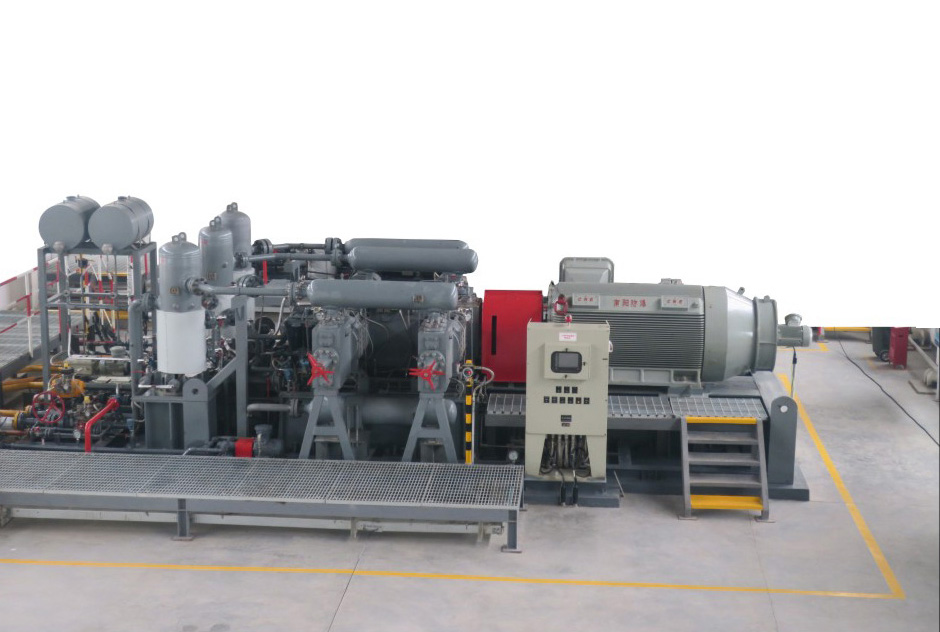

D Series of Electric Motor Driven Split Compressor Unit

C Series of Diesel Engine Driven Split Compressor Unit

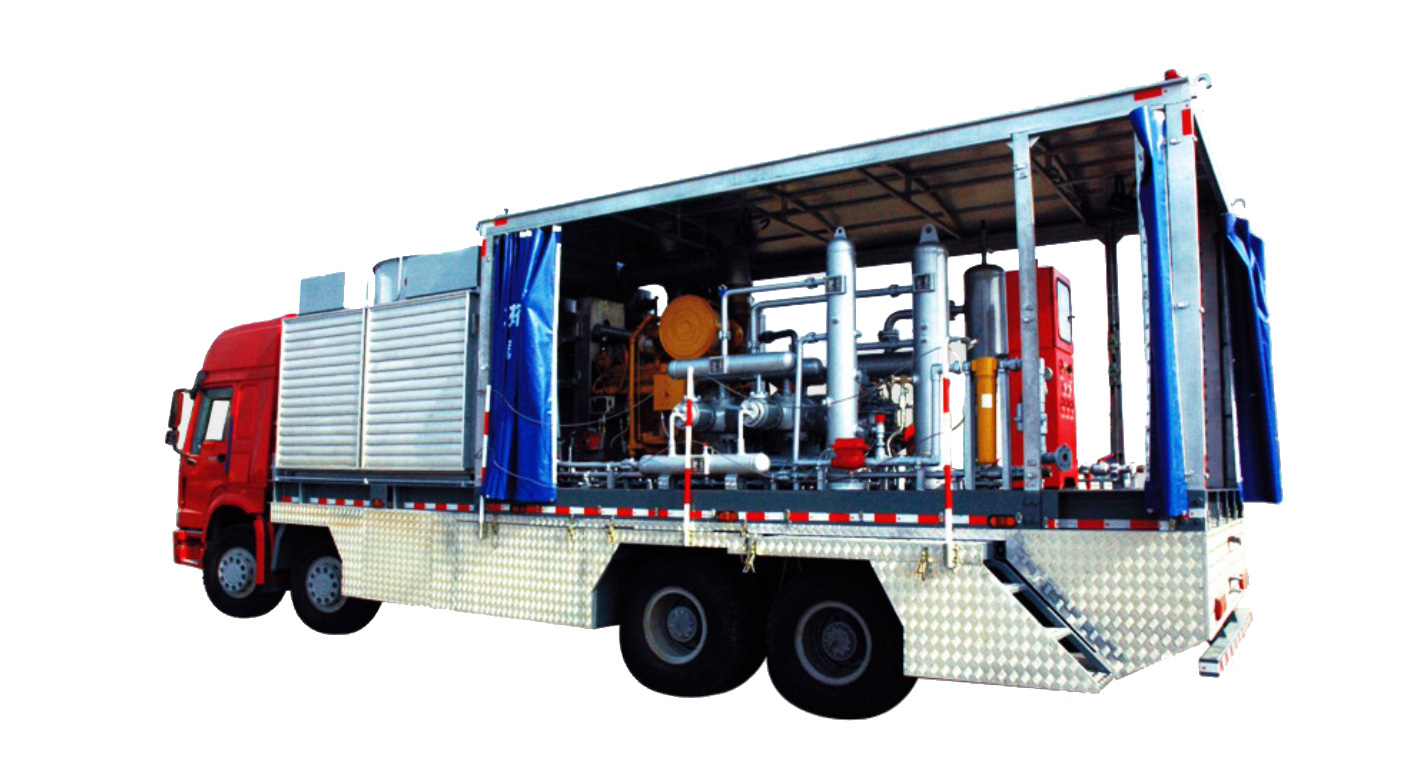

RC and CC series of gas engine or diesel engine driven vehicle-mounted compressor units

Compressor unit and its outfit are installed on the automotive chassis for mobile operation at such places as gas lift, gasproduction, oil production, gas drilling, pipeline pressure testing etc., and other places subject to field mobile operation. Suction pressure:0.5~2.4MPaG;maximum discharge pressure:52MPaG; Air displacement: 2.5~9x10⁴Nm³/d.
