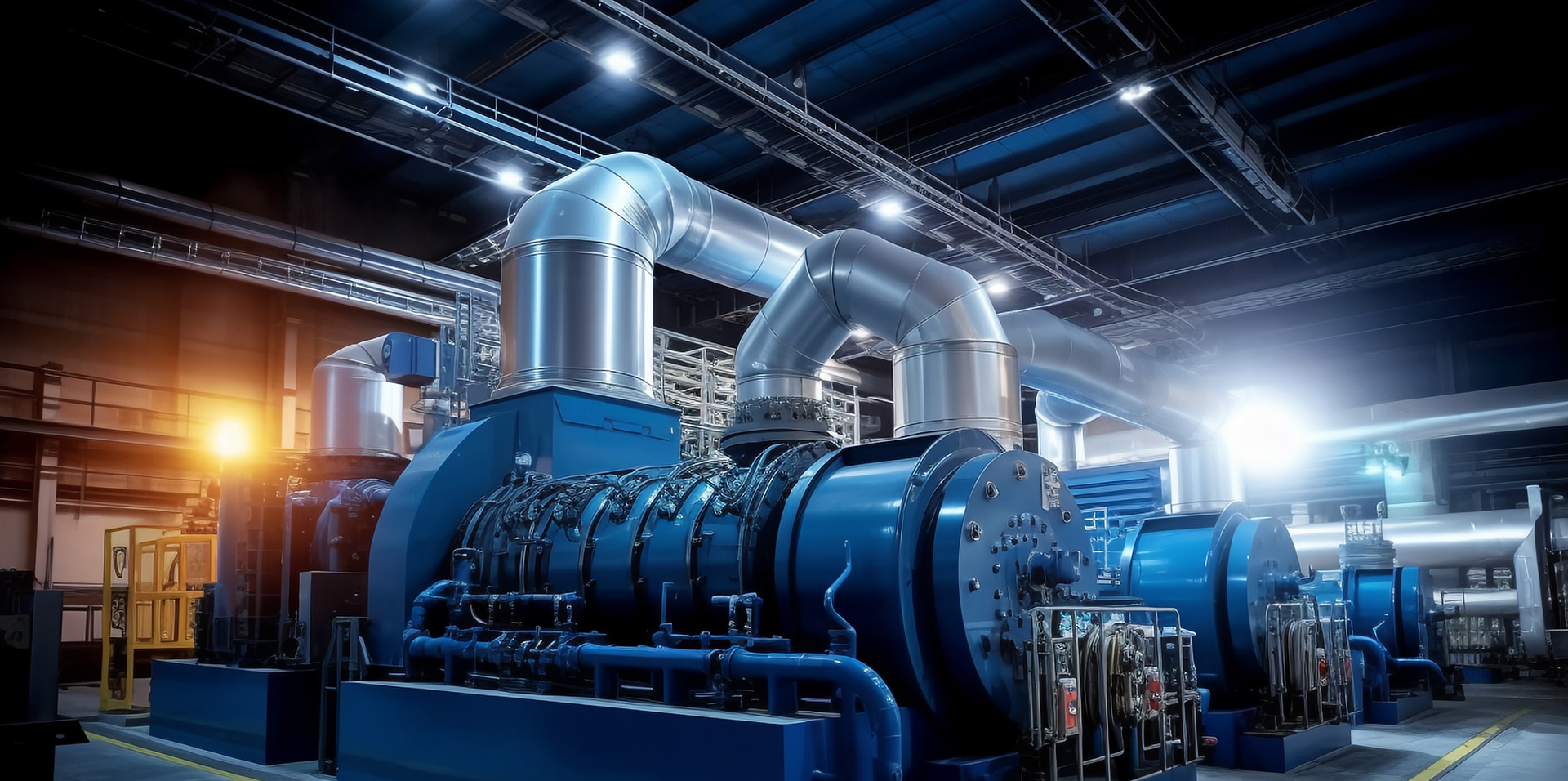

Axial Compressor Types
Shanxi blower axial compressor have AV(stationary blade adjustable type axial compressor) and A(stationary blade fixation type axial compressor) two series, each series have the following types according to the diameter of rotor hub, the stage is from 2 to 22, the compression ratio is from 1.2 to 9.
| Type | series | coverage model | description |
|---|---|---|---|
| Axial Compressor | A type | A40、A45、A50、A56、A63、A71、A80、A90、A100、A112 | stationary blade fixatio |
| AV type | AV40、AV45、AV50、AV56.AV63、AV71、AV80、AV9O.AV100、AV112、AV125、AV14 | stationary blade adjustable |
Axial Compressor Model List

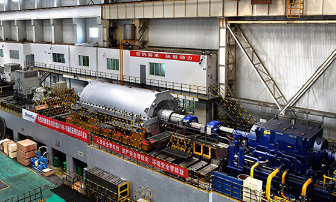

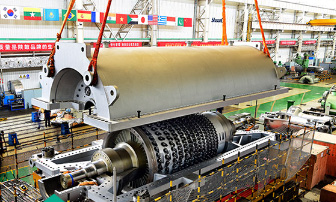

Shaanxi blower (group) successfully developed the world's largest flow rate AV140 industrial axial compressor with China's own intellectual property rights.
The performance indexes of the unit have reached the international advanced level, and can be used in the fields of extra-large blast furnaces, catalytic cracking, large-scale air separation, large-scale wind tunnels, remote gas transportation, compressed energy storage, etc. in China.
Axial Compressor Performance Parameters
| Model | Number of stages | Pressure ratio | Suction flow rate × 10³Nm³/h |
|---|---|---|---|
| A40 | 2-22 | 1.3-9 | 65-84 |
| A45 | 2-22 | 1.3-9 | 84-110 |
| A50 | 2-22 | 1.3-9 | 110-132 |
| A56 | 2-22 | 1.3-9 | 132-168 |
| A63 | 2-22 | 1.3-9 | 168-230 |
| A71 | 2-22 | 1.3-9 | 230-275 |
| A80 | 2-22 | 1.3-9 | 275-350 |
| A90 | 2-22 | 1.3-9 | 350-440 |
| A100 | 2-22 | 1.3-9 | 440-550 |
| A112 | 2-22 | 1.3-9 | 550-680 |
"A" series axial compressor performance parameters table (air)
| Model | Number of stages | Pressure ratio | Suction flow rate × 10³Nm³/h |
|---|---|---|---|
| A40 | 2-22 | 1.3-9 | 75-85 |
| A45 | 2-22 | 1.3-9 | 85-110 |
| A50 | 2-22 | 1.3-9 | 110-135 |
| A56 | 2-22 | 1.3-9 | 135-165 |
| A63 | 2-22 | 1.3-9 | 165-215 |
| A71 | 2-22 | 1.3-9 | 215-275 |
| A80 | 2-22 | 1.3-9 | 275-350 |
| A90 | 2-22 | 1.3-9 | 350-425 |
| A100 | 2-22 | 1.3-9 | 425-550 |
| A112 | 2-22 | 1.3-9 | 550-680 |
| A125 | 2-22 | 1.3-9 | 680-850 |
| A140 | 2-22 | 1.3-9 | 850-1050 |
Axial Compressor Application Areas and Product Overview
Axial flow compressor sets of Shaanxi blower (group)Co.,LTD. are widely used in metallurgical industry of various specifications of blast furnace, petrochemical industry propane dehydrogenation regeneration air compressor, petrochemical industry nitric acid unit, large-scale pumping test stand, wind tunnel, pharmaceutical industry.
| Fields | Processes | Unit Types |
|---|---|---|
| Metallurgy | Metallurgical Industry Blast Furnace Blast System Process Flow | Blast furnace blower AV unit |
| Blast furnace blast and gas residual pressure energy recovery process | BPRT unit | |
| Sintering Waste Heat and Blast Furnace Top Pressure Energy Recovery Processes | STRT unit | |
| Blast furnace blast and turbine power generation process | BCSG unit | |
| Sintering waste heat energy recovery unit | SHRT unit | |
| Steam electric synchronous driving blast furnace blower and energy recovery turbine unit | BCRT unit | |
| Unit Types | Nitric acid production process in the petrochemical industry | air compressor |
| Catalytic cracking process in petrochemical industry | central fan | |
| Propane dehydrogenation plants for the petrochemical industry | Regenerative gas compressors | |
| Petrochemical industry sulfur (iron sulfide) acid plant | central fan | |
| PTA (purified terephthalic acid) production process in the petrochemical industry | air compressor | |
| Pharmaceutical industry | air compressor | |
| test bench | Pumping Compressors | |
| Other special occasions | Special Design Compressors |
